Mercury 4 精密激光剥线系统


High performance | Low cost | Compact | Flexible

Laser Wire Solutions’ new Mercury-4 laser wire strippers are an excellent multipurpose tool for any precision wire stripping requirements. Designed with cost in mind for general purpose stripping of performance electronics.


The Merucry 4 system offers a breakthrough interms of both price and stripping performance. Akey factor in the design has been to minimize the machine foot print on the Operator’s bench and set the wire load height at an ergonomic level when used from a sitting position.

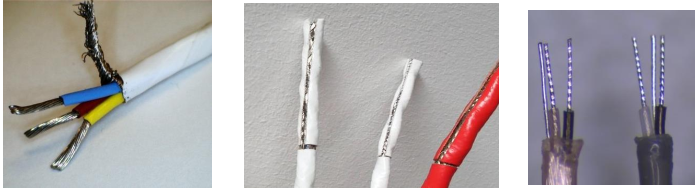

Unlike conventional laser wire strippers - the Mercury-4 utilizes high speed double sided galvoscanner technology. This allows high accuracy positioning of the laser beam at unprecedented speeds . The laser can be simply configured for endstrips, window cuts, slits or even area vaporization

不同于传统的激光剥线机, Mercury 4采用了高速双面镜头扫描技术。这使得系统能够在非常高速下实现激光束高精度定位。通过简单设置,可以实现端头剥线、开窗、纵切甚至区域蒸发烧蚀等应用。

Available in 2 orientations and 3 power versions (20 watt , 30 Watt40Watt)

2种机型和3种功率20瓦、 30瓦、 40瓦可供选择

Vertical : for the smallest laser wire stripper footprint on the market

垂直放置型: 目前市场上最小尺寸的激光剥线机

Horizontal: Small foot-print with minimum maintenance-optics arranged at right angles to wires

水平放置型:小尺寸、 维护少、 光学器件安装在导线剥头适合角度位置
