ODYSSEY

Laser Wire Solutions’ Odyssey laser wire strippers are tailored to the needs of polyimide coated type wires used in electrophysiology electrodes.

Odyssey激光系统专业针对生物医疗领域中聚酰亚胺漆包线电极精密剥头

Technology  技术原理：

Featuring ultra-violet laser technology, the Odyssey strippers vaporize any polyimide type insulation cleanly and precisely, whilst harmlessly reflecting from the shield or conductor-giving a perfect nick-free strip every time. Unlike competing laser technologies-no residue is left- so it is possible to connect to the wire without
further chemical treatment.

采用紫外激光技术，Odyssey 系统能够精密地蒸发任何聚酰亚胺类型的绝缘材料，并清洁剥头表面，每一次剥头对屏敝层和导体无任何损伤，同时没有化学性污染残留，满足洁净剥头需求。

Odyssey-2X: Standard manual unit for end strip-ping of wires. Load wires via removable fixture plate. 2”x2” strip area.

标准手动上料机型，通过可移动导线夹具上料，提供2”x2” 区域的剥线范围。

Odyssey-3X: fully automated wire feed to give the benefits of Odyssey stripping working with wires directly from a spool and then either cutting to length or re-reeling after stripping. Options include vision systems for precision strip zones and quality control.

全自动导线送线机构，提供整卷导线的激光剥头、激光切割和收线功能，并可选配视觉检测系统检查剥头区域，以实现自动质量控制。


Features & Benefits  性能特点和优势：

Unique: specially designed laser process to give unrivalled stripping performance for polyimide type wires.

独特设计：特别设计的激光剥头过程控制，提供优异的聚酰亚胺漆包线剥头效果

Clean stripping: all insulation vaporized in stripping area. No residue, no damage.

清洁剥头：所有剥头区域的绝缘材料被激光气化蒸发，无残留、无损伤

Precise: strip wires from 30 AWG down to 58 AWG and smaller. +/- 0.001 inch positioning repeatability for the best quality every time

精细剥头：剥头导线范围从30AWG至58AWG，定位精度达到+/- 0.001 英寸

Versatile: adjustable settings to allow wires to be laser cut as well as laser stripped. Strip single wires or ribbons (bi-filar, tri-filar, twisted pair etc.)

灵活控制：可调激光功率实现激光剥头、激光切割，可以剥头单股导线、双绞线和排线

Reliable: off-the-shelf integrated motion stages, sealed USA manufactured lasers and optics. USA off-the-shelf control system.

可靠运行：成熟应用的定位监测平台，密封的激光系统和光学系统，可靠的控制系统，确保整个系统长时间可靠连续运行

Fast: Typically strip a wire end in around 1 second

快速高效：通常剥头时间约1秒，高效快捷

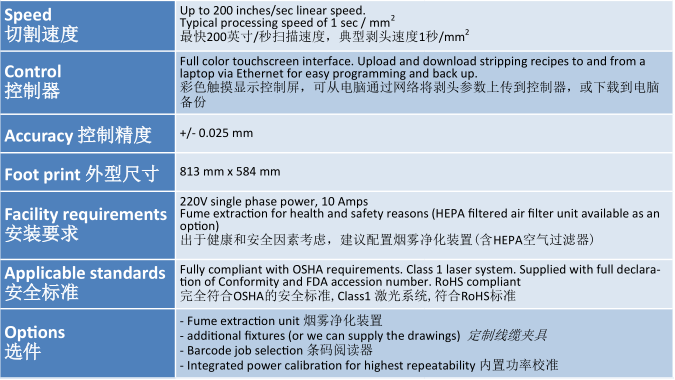

Specifications  技术参数：



We serve the global market, both directly and through local agents. All of our products comply with the latest US and European safety standards

我们服务全球市场，直接或通过区域代理商。所有的产品符合新近的美国和欧洲安全标准。

Laser Wire Solutions is a leading provider of laser stripping solutions for the highest quality medical, defence and aerospace interconnects. We can support you with proof of principle samples, contract manufacturing
services or machine supply, including customization. Check out our web-site for more information.
