Mercury+精密激光剥线系统

MERCURY
\Laser Wire Solutions’ Mercury laser wire strippers are an excellent multi-purpose tool for any precision wire stripping requirements.

Mercury系列激光剥线机是一款多功能、多用途激光系统,可以满足各种精密激光无损剥线需求。


Technology  技术原理:

Featuring carbon-dioxide laser technology, the Mercury strippers vaporize any polymer insulation cleanly and precisely, whilst harmlessly reflecting from the shield or conductor—giving a perfect nick-free strip every time.

采用了二氧化碳激光技术、Mercury剥线机可以整洁和精确地烧蚀气化掉任何聚合物的绝缘材料而对金属屏蔽层或导体无任何损伤。每一根导线都可实现无刻痕的精确剥线效果。

Available in 3 models and 2 power versions, all in the same compact footprint.

可选1X单轴、2X双轴、3X三轴激光头配置和30W、50W两种功率配置,所有机型均采用紧凑型设计。

Mercury-1X : Entry level model for stripping the ends of wires and jackets

基本型系统,用于剥离导线端头和绝缘护套

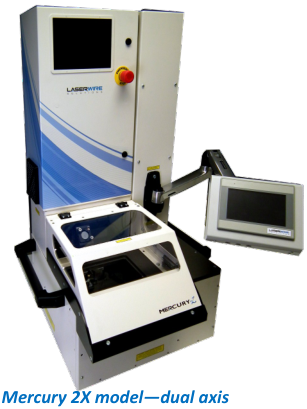

Mercury-2X: Most flexible solution allowing slitting along the wire as well as stripping the wire ends. Makes the job of peeling back a long jacket, or making a window a piece of cake.

灵活的解决方案,允许沿着导线方向进行纵向切割和进行横向端头切割,以实现长绝缘层纵向剖开或开窗口。

Mercury-3X: Ablation (remove an area of insulation by vaporization)

灵活的解决方案,允许沿着导线方向进行纵向切割和进行横向端


Features & Benefits  性能特点和优势:
\

Versatile: 52 AWG to 6 AWG, single conductor, coax and ribbons. All insulations

使用范围宽:线径从52 AWG-6 AWG,单股导线、同轴线和带状扁平电缆,满足各种绝缘材料切割

Reliable: off-the-shelf integrated motion stages, sealed USA manufactured lasers and optics. USA off-the-shelf control system.

可靠性:成熟可靠的集成式控制系统,美国制造的全密封激光发生器和光学控制部件

Fast: Up to 250 mm per second stripping stage speed to maximize your production

快速切割:高达每秒500毫米的切割速度,以实现生产批量

Compact: 620 x 720 mm footprint

结构紧凑:500mm x 500mm 台式安装

Precise: +/- 0.1 mm repeatability for the best quality every time
\
高精度:+/- 0.1mm的重复精度,每次剥线都提供一致的质量效果

Flexible: configure for use with a measure & cut unit for automatic laser stripping

灵活性:可系统集成配置,用于测量和切割的全自动下线设备,可执行全自动下线及激光剥头

Lowest cost of ownership: No laser or machine wear parts.Spare parts available direct from OEM vendor.

运行维护成本低:没有机械式的磨损消耗部件。备件可以直接从代理商选购。

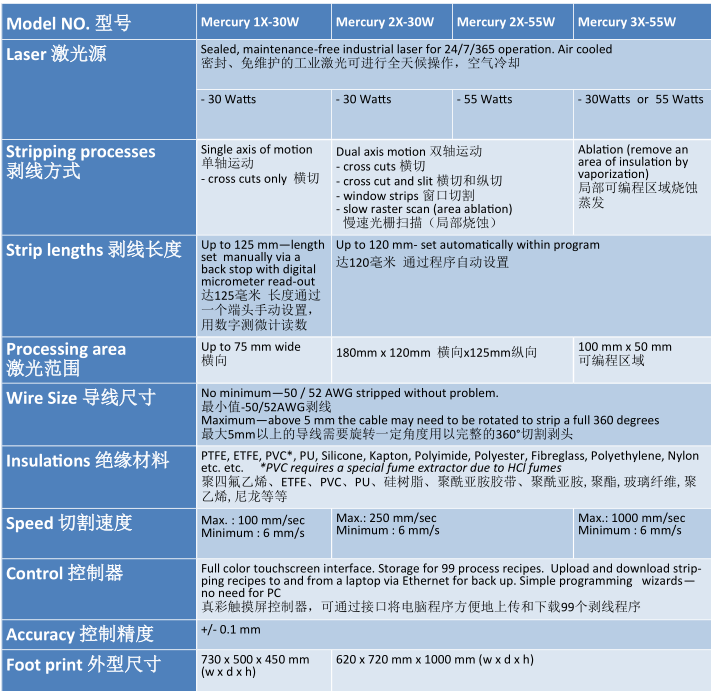

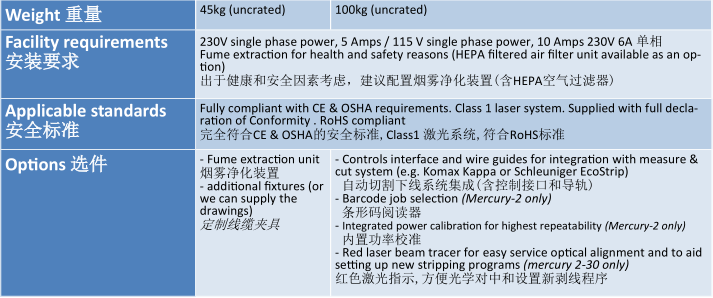

Specifications  技术参数:

\\

\


We serve the global market, both directly and through local agents. All of our products comply with the latest US and European safety standards

我们服务全球市场,直接或通过区域代理商。所有产品符合新近美国和欧洲安全标准。

Laser Wire Solutions is a leading provider of laser stripping solutions for the highest quality medical, defence and aerospace interconnects. We can support you with proof of principle samples, contract manufacturing services or ma-chine supply, including customization. Check out our website for more information.

Laser Wire Solutions是全球领先的激光剥线系统供应商。为医疗、国防和航空航天提供高质量的产品。我们在中国的技术服务中心可以为用户提供样品试剥、设备选型、可行性方案论证等一系列售前服务。

\
